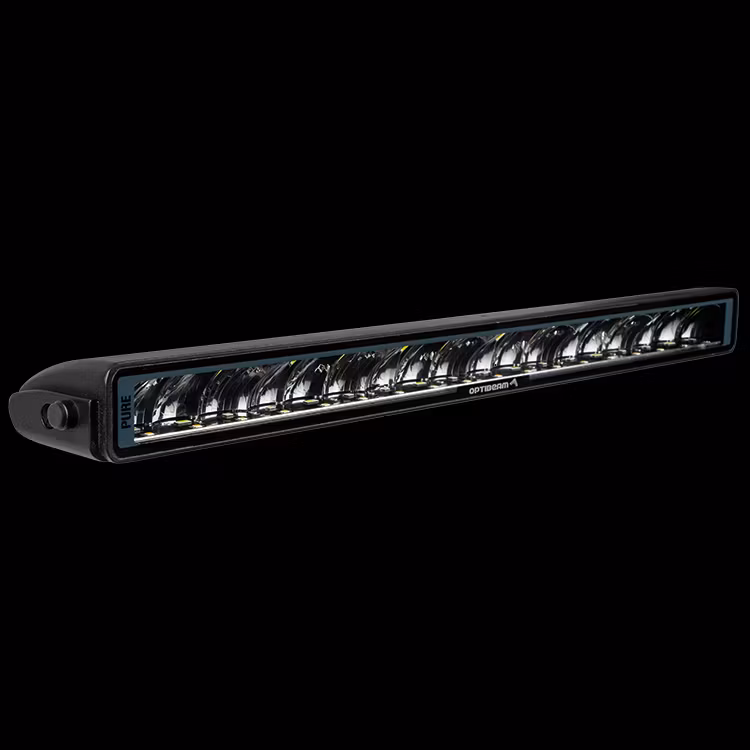

Pure 506 Intelligent+

The Optibeam Pure 506 Intelligent+ takes auxiliary lighting to a new level. Based on the proven Pure 506, it combines powerful performance, premium construction and a precisely engineered beam pattern with an innovative Intelligent+ adaptive lighting function.

When the main driving light is switched off, for example when approaching oncoming traffic, Intelligent+ automatically changes the beam pattern instead of turning the light off completely. The side-focused light continues to illuminate the road edges and verges, helping the driver spot pedestrians, animals and other hazards earlier without dazzling oncoming traffic.

The Intelligent+ function also operates dynamically during the transition, with one side switching off immediately while the other dims gradually. The result is better visibility and added safety exactly when it matters most.

The curved 508 mm housing, 16,230 measured lumens and 293 m 1-lux range deliver outstanding performance, while the 9–48 V operating voltage makes the Pure 506 Intelligent+ suitable for a wide range of vehicles.

Optibeam Pure 506 Intelligent+ Technical Specifications:

• Operating Voltage: 9-48V
• Reference Number: 25
• Power Consumption: 22.32A @13.7V
• Measured Light Output: 16230lm, R149 550lm
• Color Temperature: 5500K
• Beam Range: 1 lux at 493 meters, R149 293 meters
• Cable Length & Connector: 220cm, 2-pin DTP
• Dimensions: 508.00 x 42.00 x 65.00mm
• Warranty: 36 months
• Certifications: R149, R148, R10
