DARK PHANTOM MARKER & POSITION LIGHT ROUND

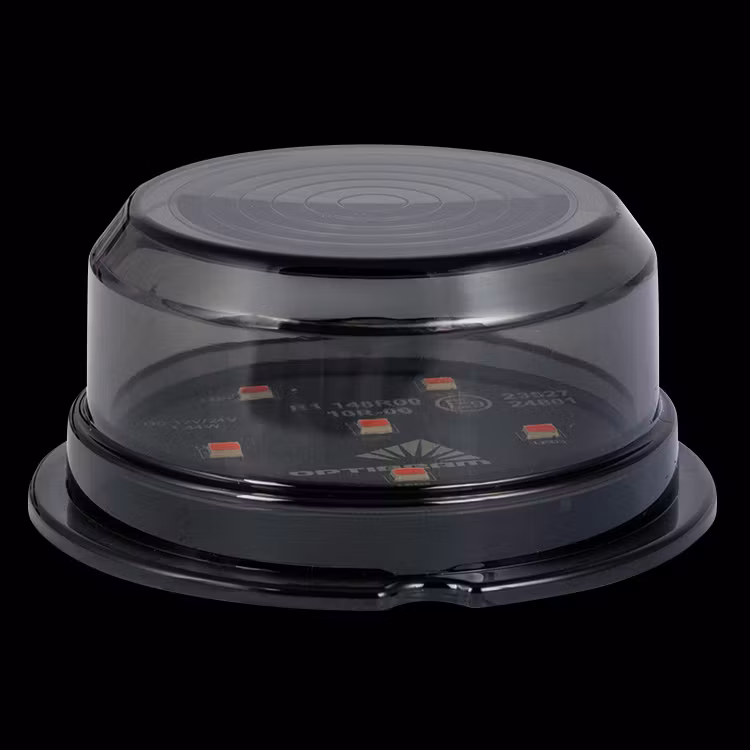

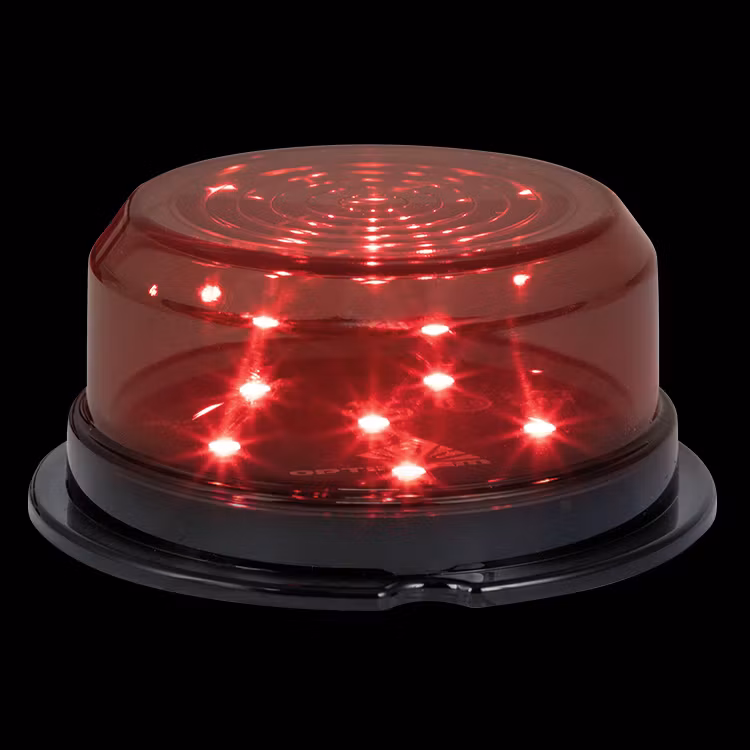

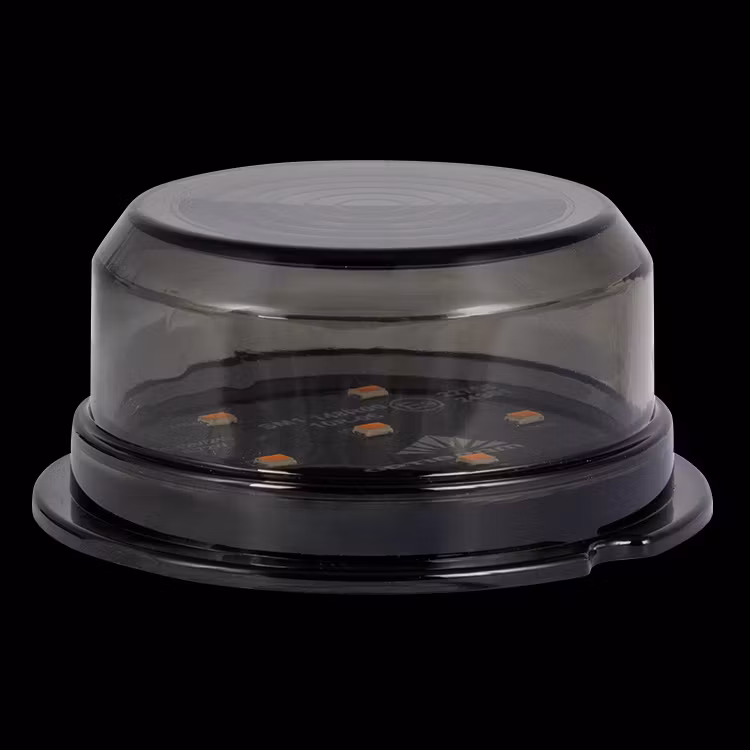

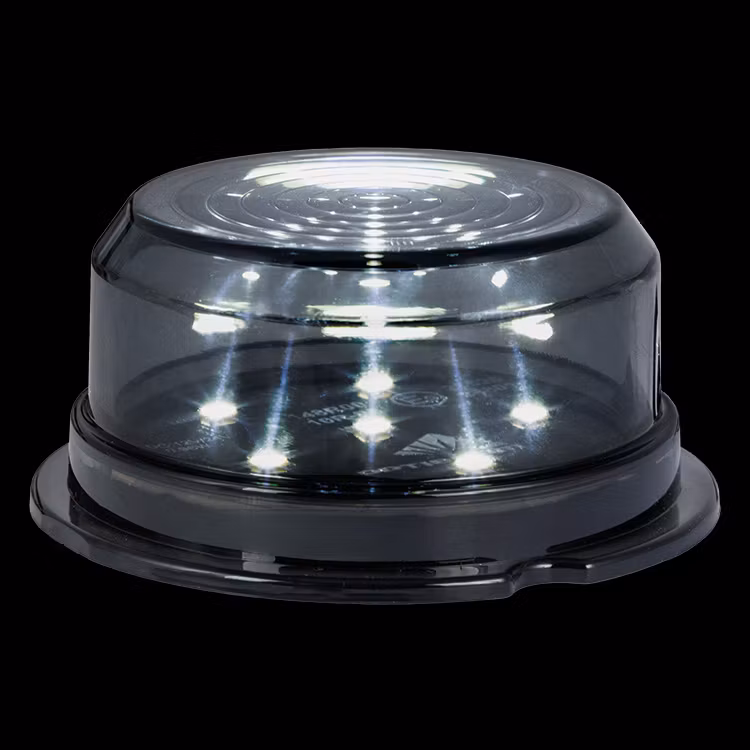

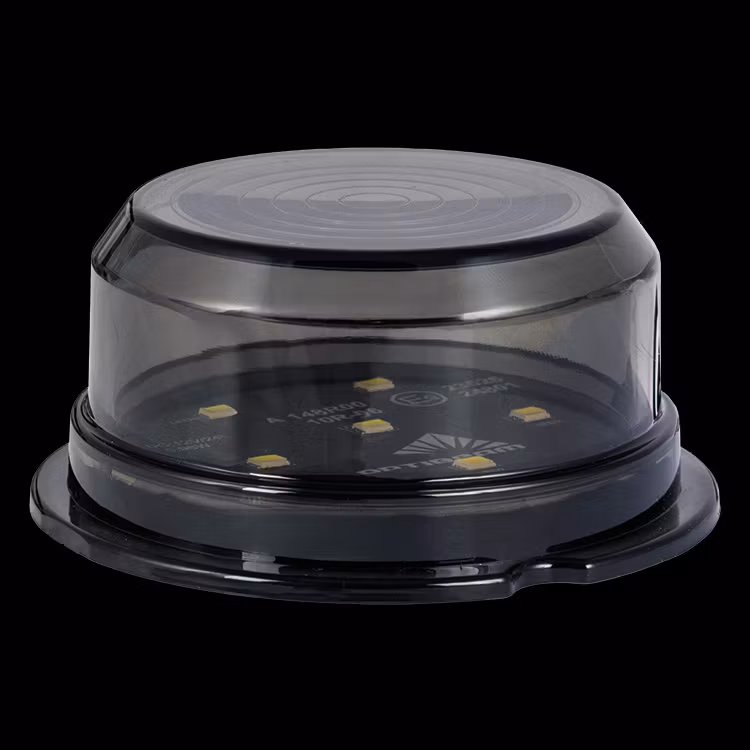

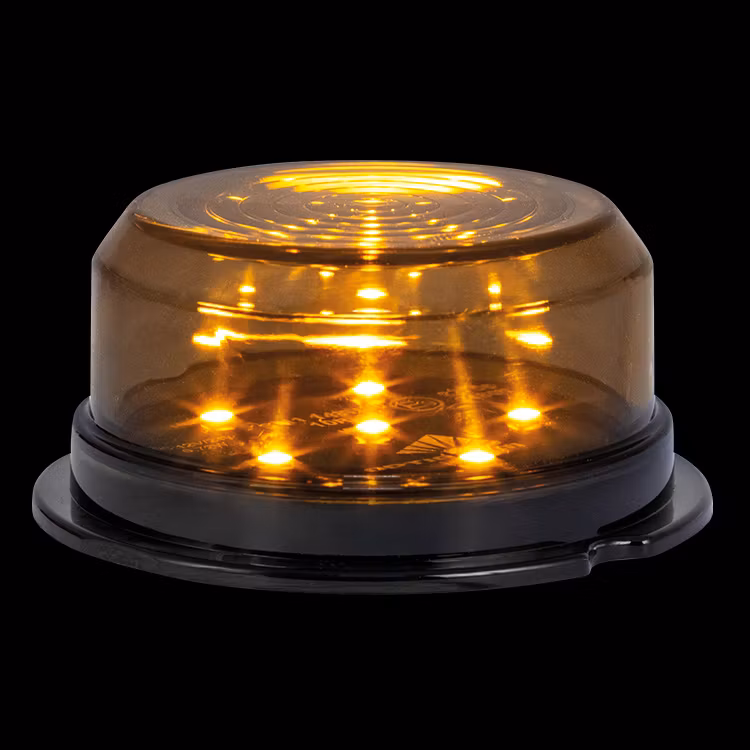

Optibeam Dark Phantom Round Marker & position lights. Compact and durable LED marker & position light for side, rear and front applications. Available in white, red and yellow. The shock-resistant construction is designed for demanding vehicle applications and the light is equipped with a 500 mm ADR cable.

The light can be installed directly to the vehicle structure, depending on the application. For greater installation flexibility, several flexible mounting arm options are also available separately as installation accessories. These mounting arms allow the light to be positioned on different vehicle structures and surfaces, helping to achieve a clean, secure and durable installation.

Optibeam Dark Phantom Marker & Position Light Technical Specifications:

• Operating Voltage: 10-32V
• Color options: Amber, Red, Blue
• LEDs: 9
• Power Consumption: 0,72 W (Amber), 1,44 W (Red), 0,96 W (White)  @ 36 V
• Connection: 2-pin open end ADR-cable
• Cable Length: 50cm
• Size: ø 70.40 (57.50) x 31.80mm
• IP Rating: IP67
• Certifications: ECE, EMC R10, R148, CE, RoHS
• Mounting: Flexible mounting arms are available separately among the installation accessories, offering additional options for mounting the light on different vehicle structures.
